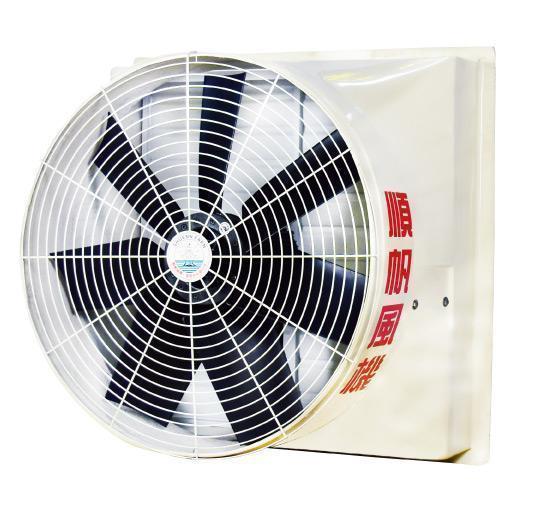

36 Inch AC/DC - SFRP-367DN/DCN - S.F.R.P. Negative Pressure Exhaust Fan

36 Inch AC/DC - SFRP-367DN/DCN - S.F.R.P. Negative Pressure Exhaust Fan

SFRP-367DN/DCN

Product ID: SFRP-367DN/DCN



【AC Motor】

◎ The shutters are cold-resistant, UV-resistant, and adaptable to various kind of climate environments; the shutters are based on the principle of air flow downstream, without consuming power, and effectively preventing the exhaust fan from the invasion of rain.

◎ The cover is integrally formed with FRP fiberglass fiber to reduce metal resonance: light weight, insulation, no degradation, no aging, acid resistance, heat and cold resistance, humidity resistance, durability, and well increase the service life of the fan.

◎ Remove heat and accelerate air circulation.



【DC Motor】

◎ Compare to AC motor, DC motor can save 30 ~ 50% electricity.

◎ Overcurrent / voltage protection.

◎ Over-short circuit protection.



【notice】

◎ The size data is for reference only, the actual decibel value will vary depending on the installation method and workplace

◎ The size is corrected without prior notice, please use the latest one as the main one.





See more complete detail
Model SFRP-367DN SFRP-367DCN
Motor AC Motor DC Motor
Frame Material FRP Fiberglass FRP Fiberglass
Blade 36" 7 Blades  36" 7 Blades
blade material FRP FRP
SPEED(RPM) 650 650
HP 2HP 1.5HP
Power(W )  1500 1100
Voltage(V) 3 Phase 220V 1 Phase 220V
Airflow (CMM) 290 290
Noise dB (A) 81 81
N.W. (KG) 50 52
Dimensions
(mm)
1085 1085
560 560
1085 1085
