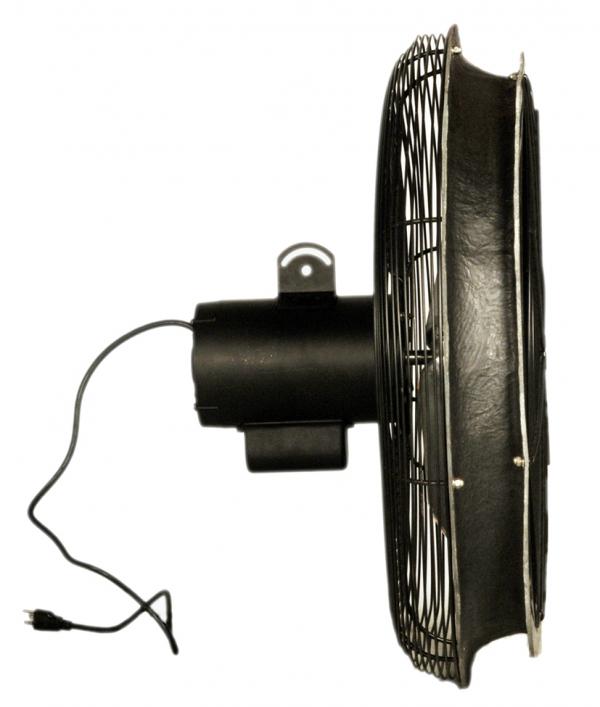

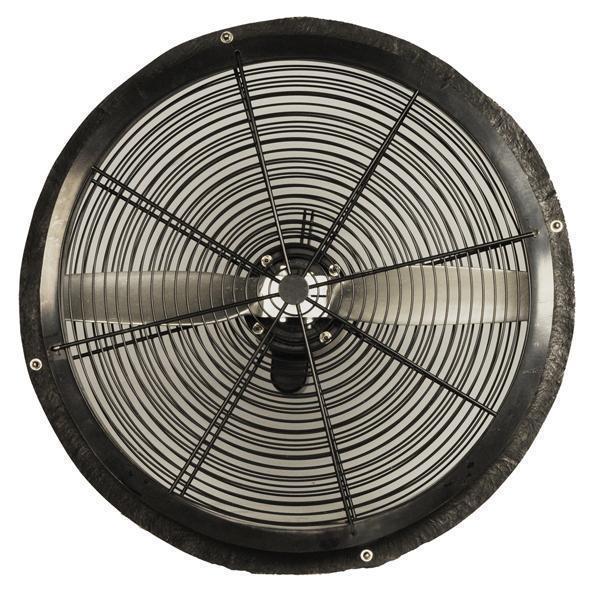

High Velocity Air Circulator

High Velocity Air Circulator High Velocity Air Circulator

Product ID: SF-24142FC



【Product Features】

◎ High velocity air, especially large air volume.

◎ Front and rear protection guard, safer to use.

◎ aluminum alloy fan blades.

◎ FPR frame - durability and rust resistance.

◎ Fully enclosed motor, well used outdoors.

◎ This machine can be used in humid space, such as greenhouse and poultry, which has done rust protection.

◎ The air supply distance can reach 30M.



【Notice】

◎ The volume data is for reference only, the actual decibel value will vary depending on the installation method and workplace.

◎ The size is corrected without prior notice, please use the latest one as the main one.



【Scope of application】

Factories, poultry, greenhouses, working environment spaces are elongated (to help increase the pressure of the wind and make the diversion longer), etc.











See more complete detail
Model SF-24142FC
Frame Material  FRP Fiberglass
Blade 24" 2 Blades
blade material FRP
SPEED(RPM) 1700
HP 3/4HP*3Ø*4P
Airflow (CMM) 233
Noise dB (A) 85
N.W. (KG) 22
Dimensions
(mm)
730
580
730
