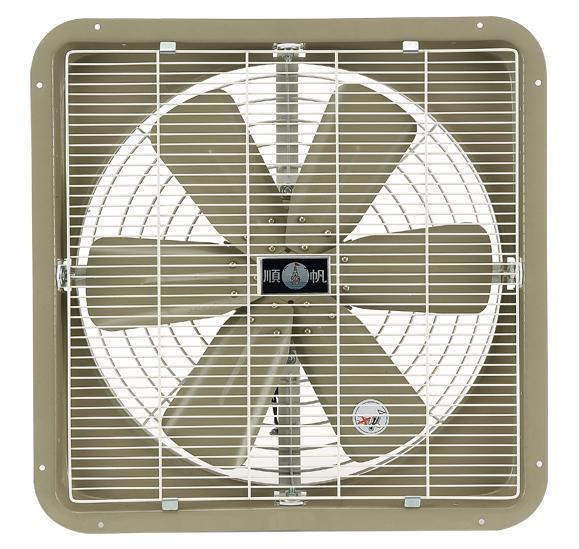

Wall Mount Exhaust Fan-iron Blades
Steel Blades
Product ID: SF14 ~ SF24
【Product Features】
◎ High velocity exhaust fan with high efficiency and low noise.
◎ Blade material: iron.
◎ Front and rear protection guard.
【Notice】
◎ The volume data is for reference only, the actual decibel value will vary depending on the installation method and workplace.
◎ The size is corrected without prior notice, please use the latest one as the main one.
◎ If you need special size or voltage specifications, please inform or contact the business department in advance.
See more complete detail
Model |
HP |
Phase(Ø) |
HZ |
SPEED(RPM) |
Airflow (CMM) |
Noise dB (A) |
Dimensions (mm) |
N.W.(KG) |
G.W.(KG) |
SF-14 |
1/3HP*4P |
3Ø |
50/60 |
1400/1700 |
43/55 |
69 |
452*452*245 |
11 |
13 |
SF-16 |
1/3HP*4P |
3Ø |
50/60 |
1400/1700 |
48/60 |
72 |
510*510*245 |
12 |
14.8 |
SF-18 |
1/3HP*4P |
3Ø |
50/60 |
1400/1700 |
58/70 |
75 |
562*562*252 |
15 |
18.5 |
SF-18 |
1/3HP*6P |
3Ø |
50/60 |
950/1120 |
50/60 |
64 |
562*562*252 |
15 |
18.5 |
SF-20 |
1/2HP*4P |
3Ø |
50/60 |
1400/1700 |
65/80 |
78 |
633*633*260 |
18 |
22.2 |
SF-20 |
1/2HP*6P |
3Ø |
50/60 |
950/1120 |
55/65 |
69 |
633*633*260 |
18 |
22.2 |
SF-24(4 Blades ) |
1/2HP*6P |
3Ø |
50/60 |
950/1120 |
72/90 |
71 |
718*718*290 |
22 |
27.5 |
SF-24(4 Blades ) |
1HP*4P |
3Ø |
50/60 |
1400/1700 |
110/140 |
85 |
718*718*290 |
25 |
30.5 |
|
Order Information:
- Minimum Order: Negotiable
- Branded Product
