Fan Shutters

Fan Shutters Fan Shutters

The shutters will constructed with PVC plastic. This material is UV-stabilized for many years of corrosion resistance.

  • the shutters will auto-open by itself when the power turns on.

     22

See more complete detail
                                    PVC Shutters

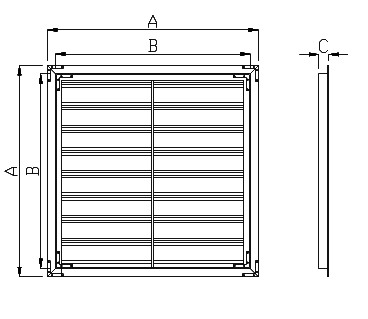

Type Size A(mm) B(mm) C(mm) Blade Weight(kg)
W01-04 14” 450 405 35 4 1.2
W01-05 16” 515 470 35 5 1.33
W01-06 18” 560 515 35 5 1.48
W01-07 20” 630 585 35 6 1.74
W01-08 24” 710 665 35 7 2.24
W01-09 30” 865 800 40 9F*2 4.61
W01-11 36” 905 840 40 10F*2 6.9
W01-13 42” 955 890 40 15F*2 8.4
W01-14 48” 1195 1130 40 15F*2 9.33
W01-15 50” 1425 1360 40 15F*2 8.15
W01-17 50” 1448 1383 40 15F*2 8.15



                               Aluminum    Shutters
Type Size A(mm) B(mm) C(mm) Blade Weight(kg)
W02-01 16" 520 460 55 7 3.1
W02-02 18" 570 510 55 8 3.6
W02-03 20" 610 550 55 8 4
W02-04 24" 710 655 55 10 4.7
